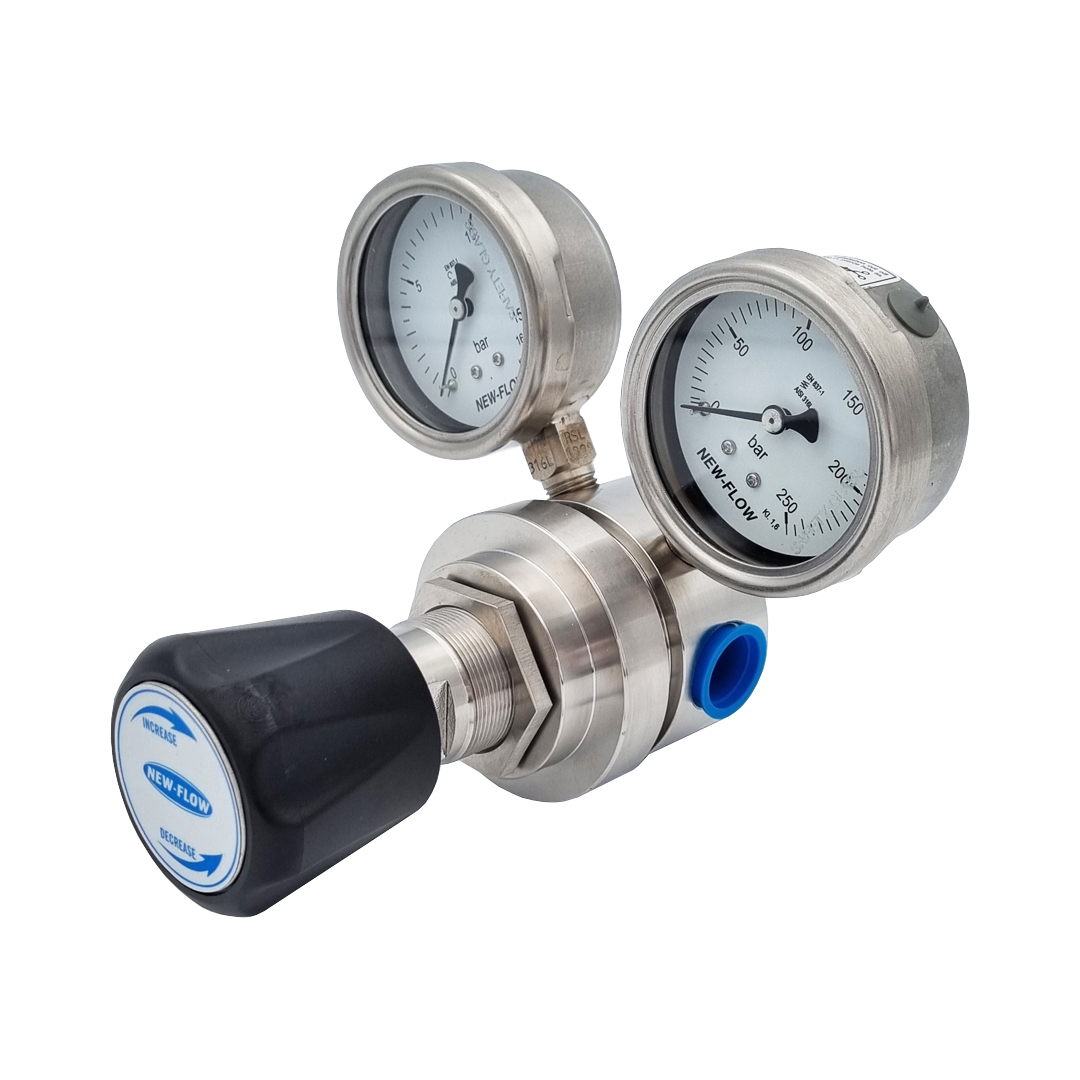

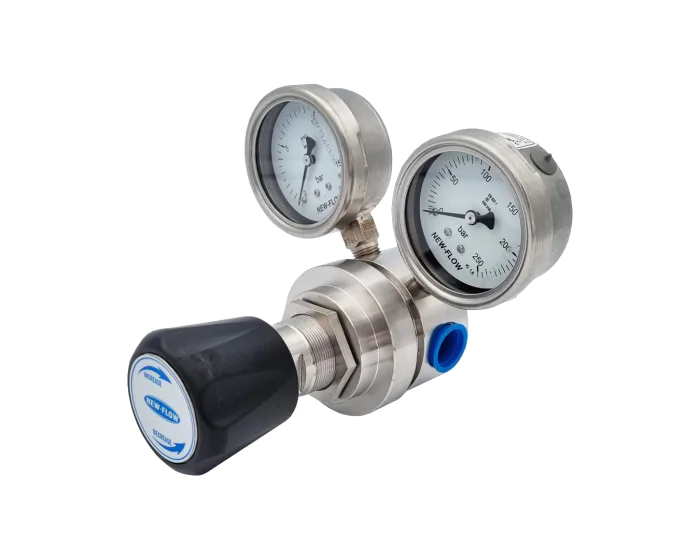

The pressure reducing valve type PRU 200 in stainless steel is designed for the outlet pressure function of gases and liquids up to 240 bar.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX compatible | No |
| DN | DN15 - 1/2'' |
| Kv (m³/h) | 0.85 |
| Body material | Stainless steel 316 (1.4401) |
| Downstream pressure range (bar) | 0.15 / 10 |
| PS (bar) | 240 |
| Connections | NPT FF |
| TS max (°C) | 175 |
| TS min (°C) | -40 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Stainless steel 316 (1.4401) 0.15 / 10 | 2420011 | S1012160 |
€647.86
(excl. btw)
|
add to cart |
| NPT FF Stainless steel 316 (1.4401) 0.20 / 17 | 2420012 | S1012161 |
€647.86
(excl. btw)
|
add to cart |
| NPT FF Stainless steel 316 (1.4401) 0.35 / 34 | 2420013 | S1012162 |
€647.86
(excl. btw)
|
add to cart |
